X4D Core

Core Module

X4D Core: Tag Navigation

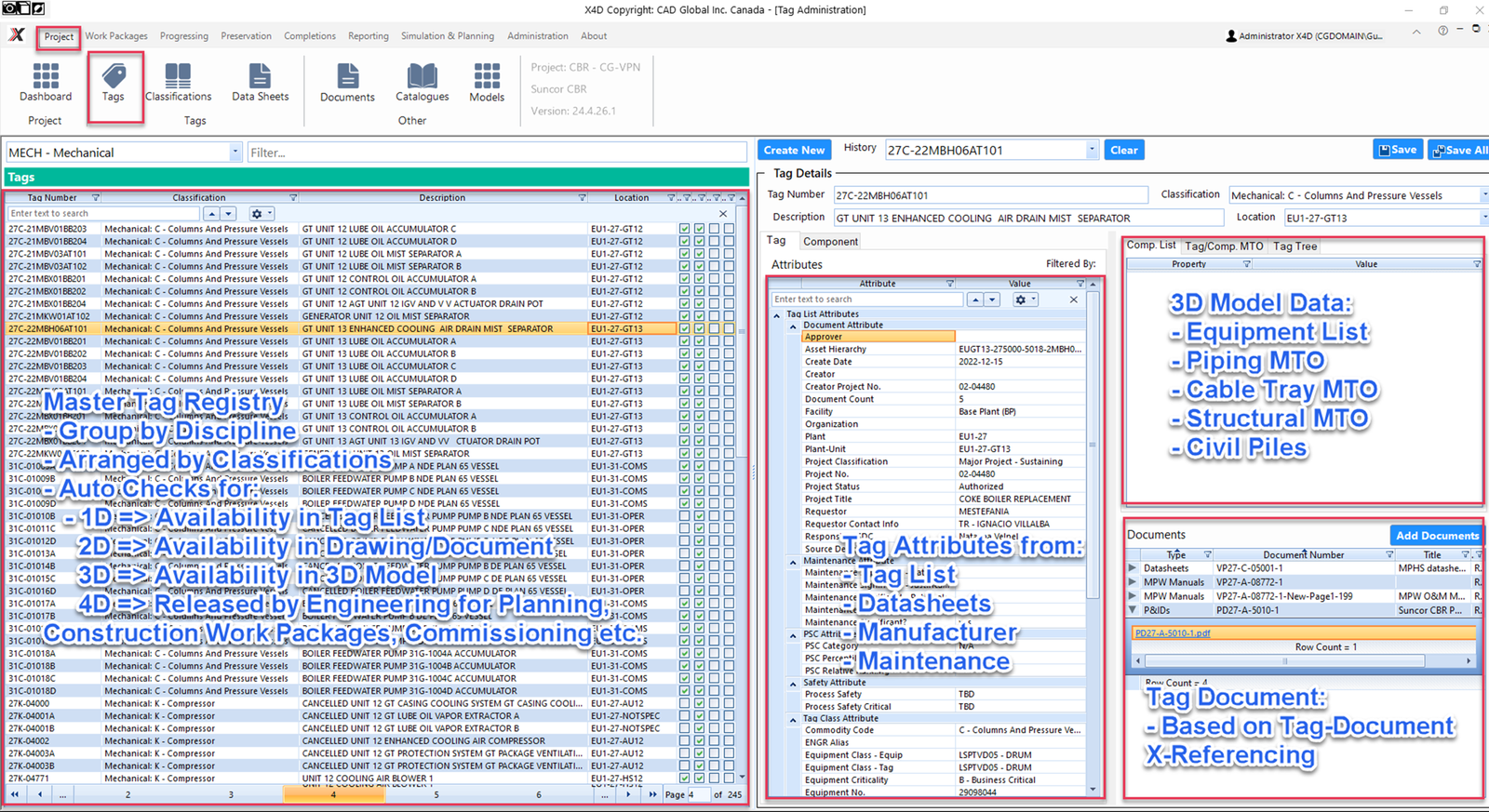

X4D Core maintains a well-structured Master Tag Registry, organized by discipline and classification. This serves as the foundation for developing key modules such as the Engineering Data Warehouse, Advanced Work Packages, Commissioning System Markups, and comprehensive reporting tools.

Master Tag Registry, organized by discipline and classification

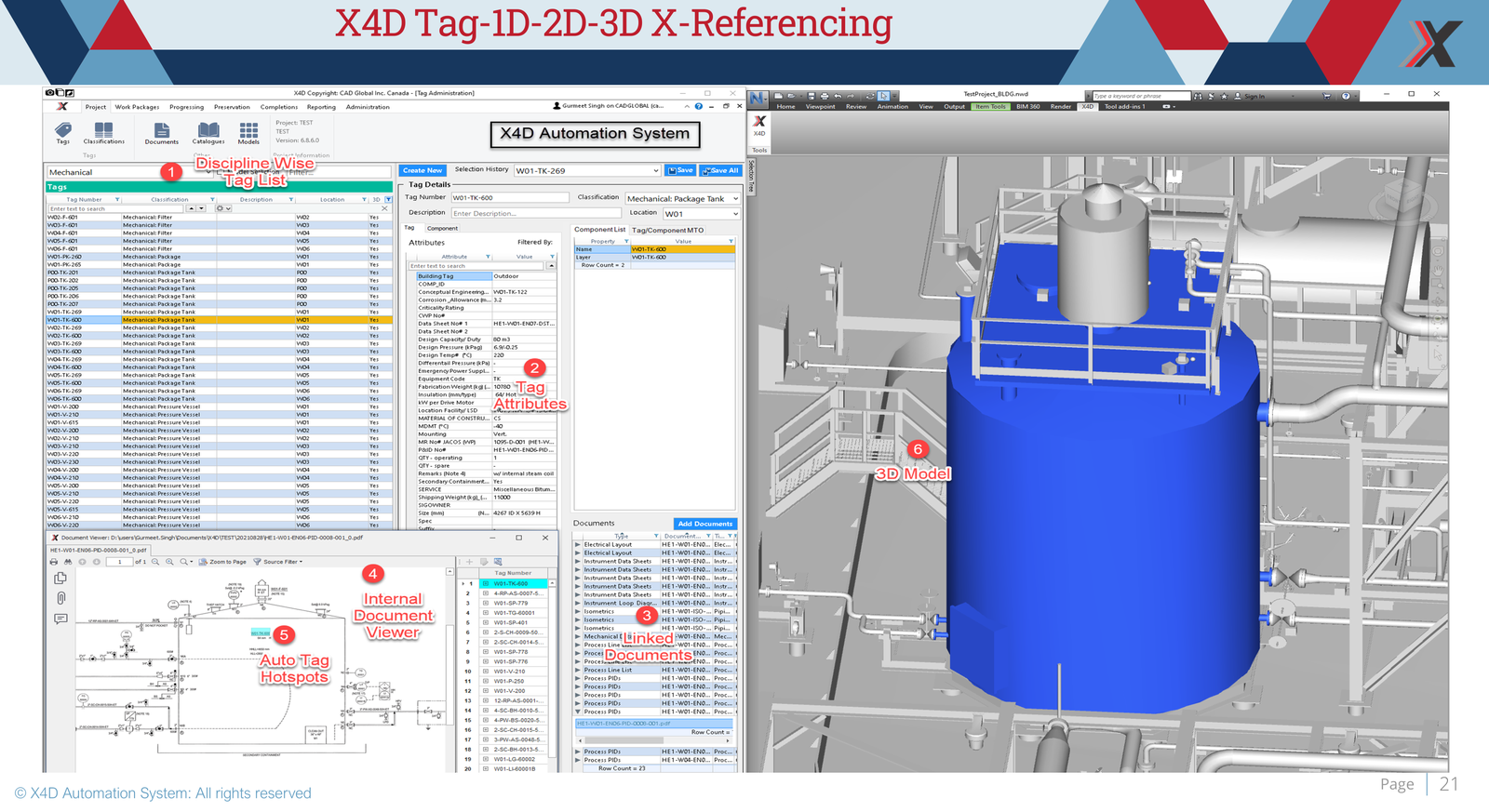

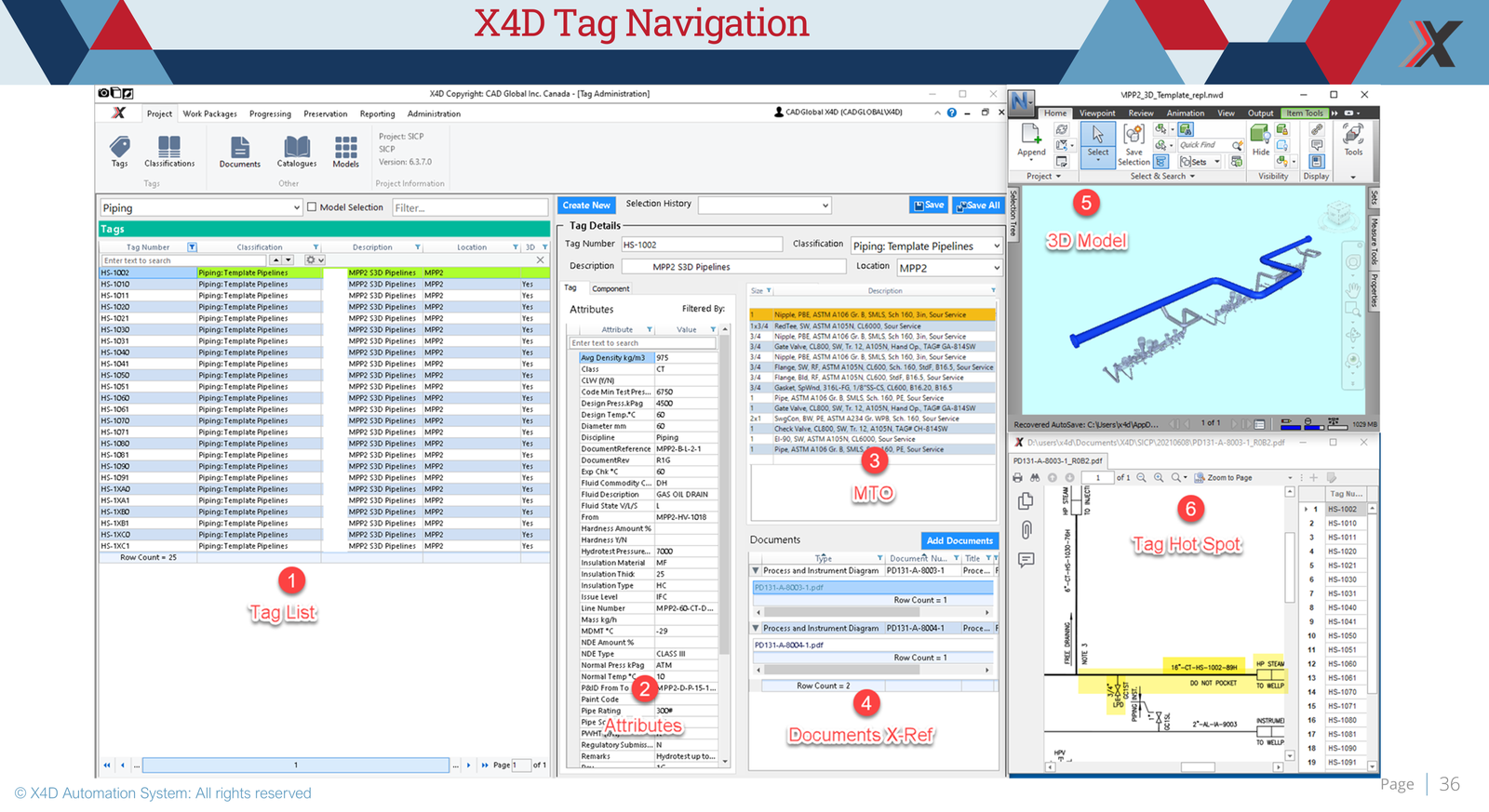

Displays all linked attributes upon tag selection or search
Groups attributes by category for structured visibility
Shows the complete underlying MTO of the selected tag
Provides access to hyperlinked documents with tag-specific highlights
Enables automatic zoom and highlight of the selected tag within the 3D mode

Core Module

X4D Core: The Tool Agnostic System

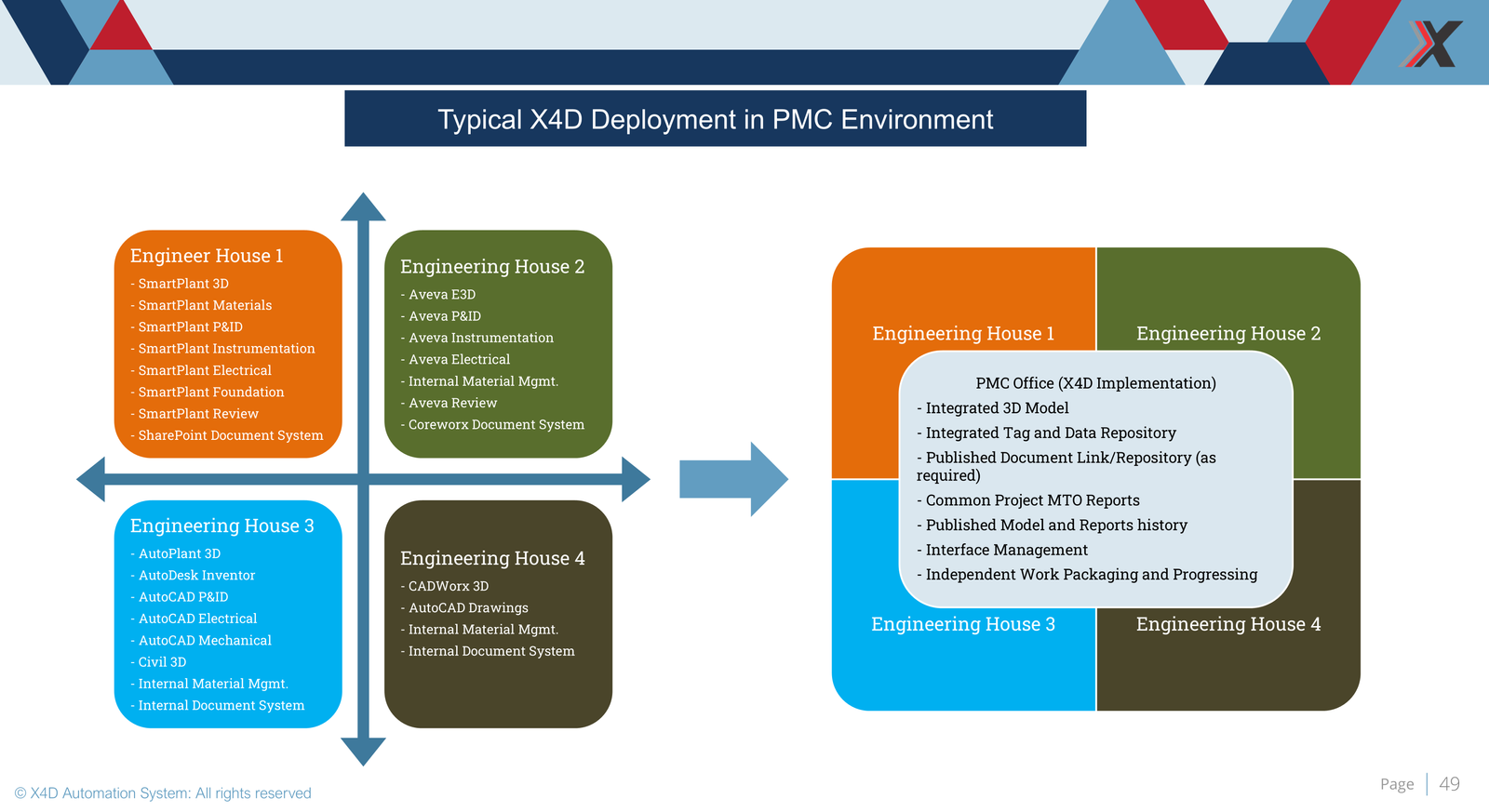

X4D is a unified software platform that remains agnostic to the diverse range of engineering design systems used in plant design.

Diverse Engineering and Document Systems
Comprehensive Data Extraction by X4D 1D, 2D, and 3D
2D Drawing and Documents
Unified Data Integration in X4D
Enables Tool Agnostic, Centralized and cross-referenced environment for Tag Management and reporting

Core Module

X4D Core: Reporting and Revision Management

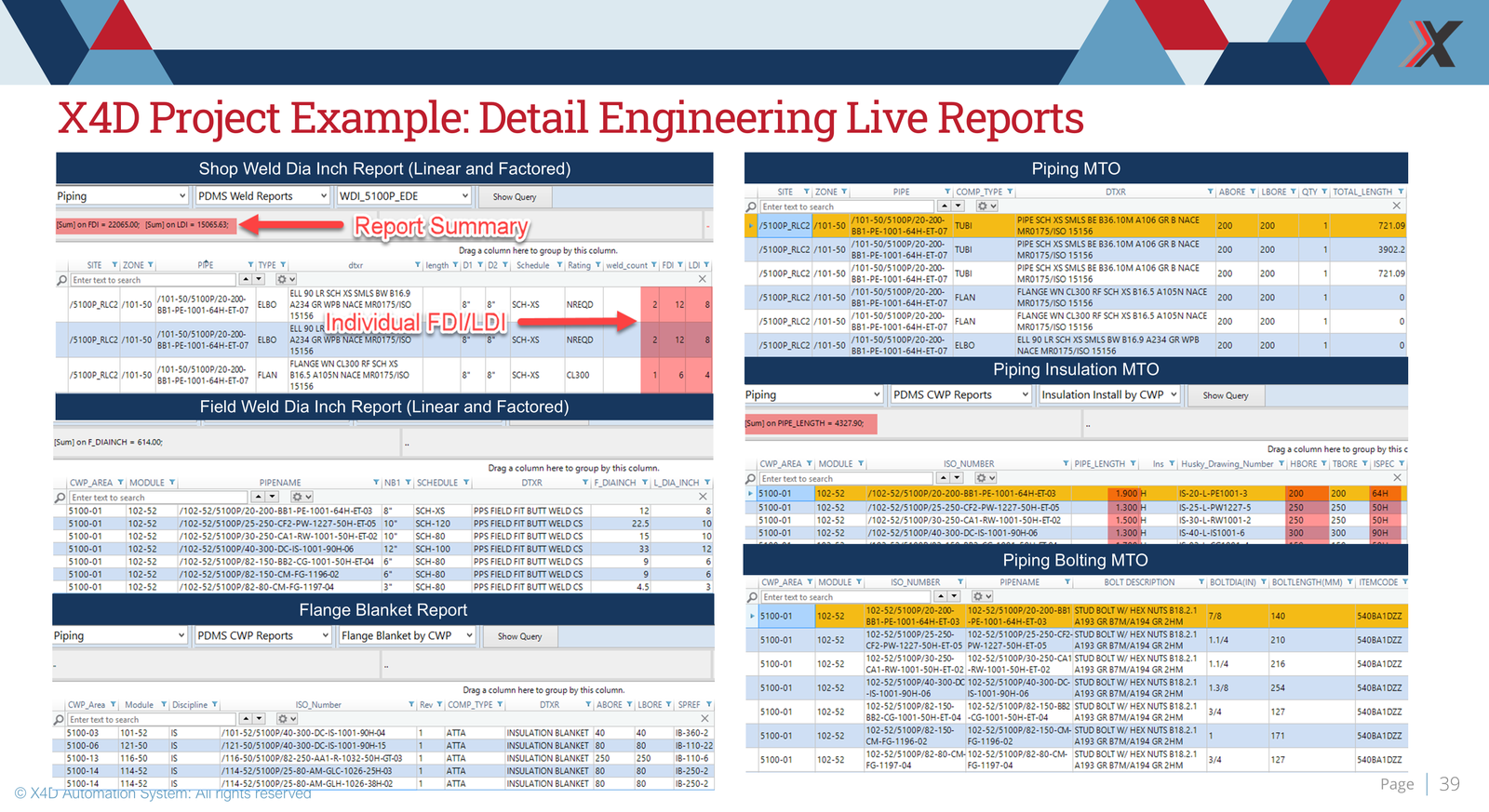

X4D Core features a centralized reporting module that enables the extraction of discipline-wise reports for tags, documents, progress tracking, preservation activities, and processed drawings and documents.

Maintains Discipline-wise Reports across key project elements
Reporting capabilities include Tags, Documents, System, Progress Tracking and Preservation activities
Multiple report revisions can be issued throughout the project lifecycle
Enables historical tracking of changes over time
Facilitates delta change comparisons between multiple Report Versions

Core Module

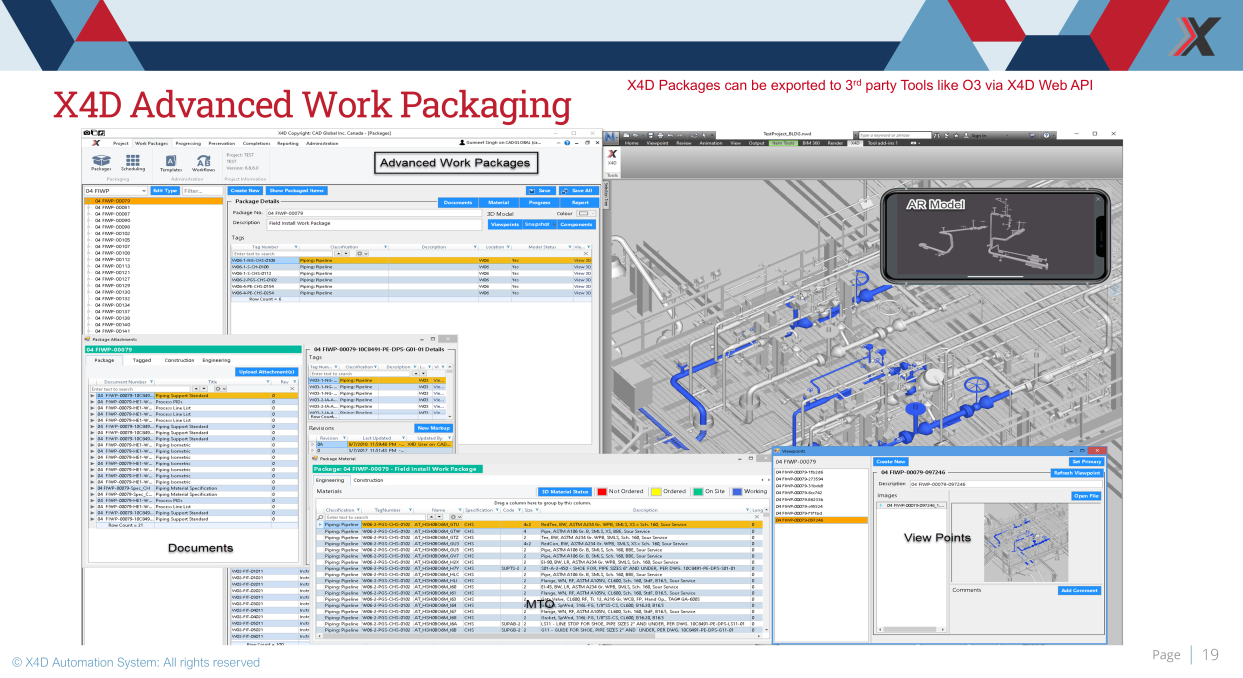

X4D Core: Advanced Work Packages (AWP)

X4D is a unified software platform that remains agnostic to the diverse range of engineering design systems used in plant design.

Flexible Multi Level of Wok Package Hierarchy
Construction Work Package (CWA)
Engineering Work Packages (EWP)
Field Install Work Packages (FIWP)

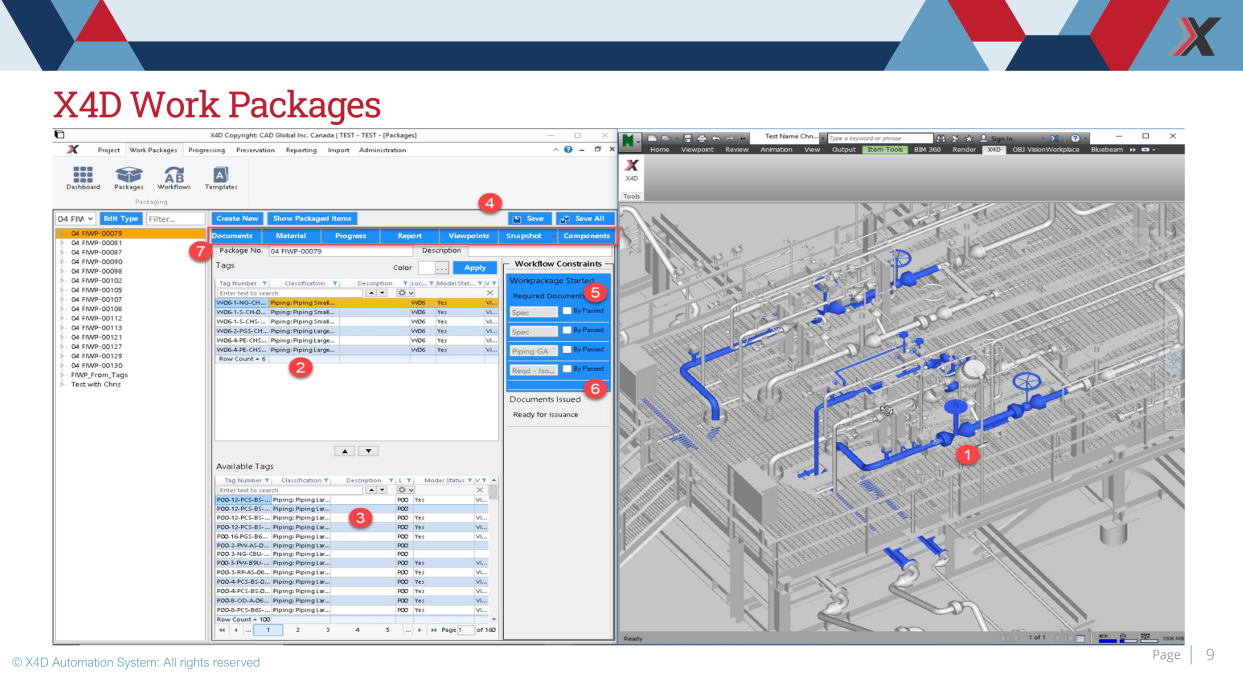

Tag Selection from Tag List and/or 3D model
Automated Document Linking with Markups
Automated Package MTO with Material Status Tracking
Create Package View Points
Export the Work Package for AR Viewing

X4D Core Module Overview

Explore the power of X4D Core through an interactive gallery showcasing seamless tag navigation, integrated 2D/3D visualization, advanced work packaging, commissioning workflows, and real-time reporting - all in one intelligent platform.
