Bridging the Gaps in O3 Commissioning with X4D
In complex capital projects, commissioning systems like O3 are powerful tools for managing execution and handover. However, practical data collection challenges often arise - especially when working with mixed sources such as 2D drawings, Excel sheets, scanned vendor documents, and variety of engineering design systems like Aveva, SmartPlant, AutoDesk, BIM and Bentley Suite of Products.
X4D complements O3 by bridging these gaps, transforming scattered information into structured, actionable data for a seamless commissioning process.
Incomplete or Missing Tag Data
O3 requires complete and structured tag data to manage commissioning effectively. However, in many projects, critical tags are spread across unstructured files or not available at all from the engineering system.
- Extracts tags automatically from DWGs, PDFs, Excel sheets, and scanned documents.
- Consolidates all sources into a clean, structured Master Tag Index.
- Identifies and flags missing or duplicated tag entries.
Scattered Data Across Multiple Formats
Data required by O3 may come from different tools, teams, and file formats, making it difficult to compile into one consistent dataset.
- Aggregates data from AVEVA, Hexagon, Excel, and legacy databases.
- Unifies disparate formats (2D drawings, PDFs, spreadsheets) into a standardized schema.
- Maintains source references for traceability.
Inconsistent Naming and Metadata
Tag names, system codes, or units may vary across documents and tools, causing mapping issues or validation failures in O3.
- Applies rule-based renaming of Tags and Tag Aliases
- Maps inconsistent tag formats using smart matching algorithms.
- Ensures metadata is consistent, complete, and O3 ready.
Missing Attributes in Engineering Systems
Engineering deliverables often lack full attribute sets (e.g., set points, model numbers), especially for vendor-supplied equipment.
- Extracts missing attributes from scanned datasheets using OCR and AI-based layout recognition.
- Populates missing fields to ensure attribute completeness for commissioning and handover.
- Identifies and flags missing or duplicated tag entries.
No Visual Context for Tags
Commissioning teams using O3 need to visually verify tag placement and interconnections - something not possible from tabular data alone.
- Overlays tags on P&IDs and layout drawings for contextual verification.
- Enables side-by-side review of tag metadata and visual location.
- Identifies and flags missing or duplicated tag entries.

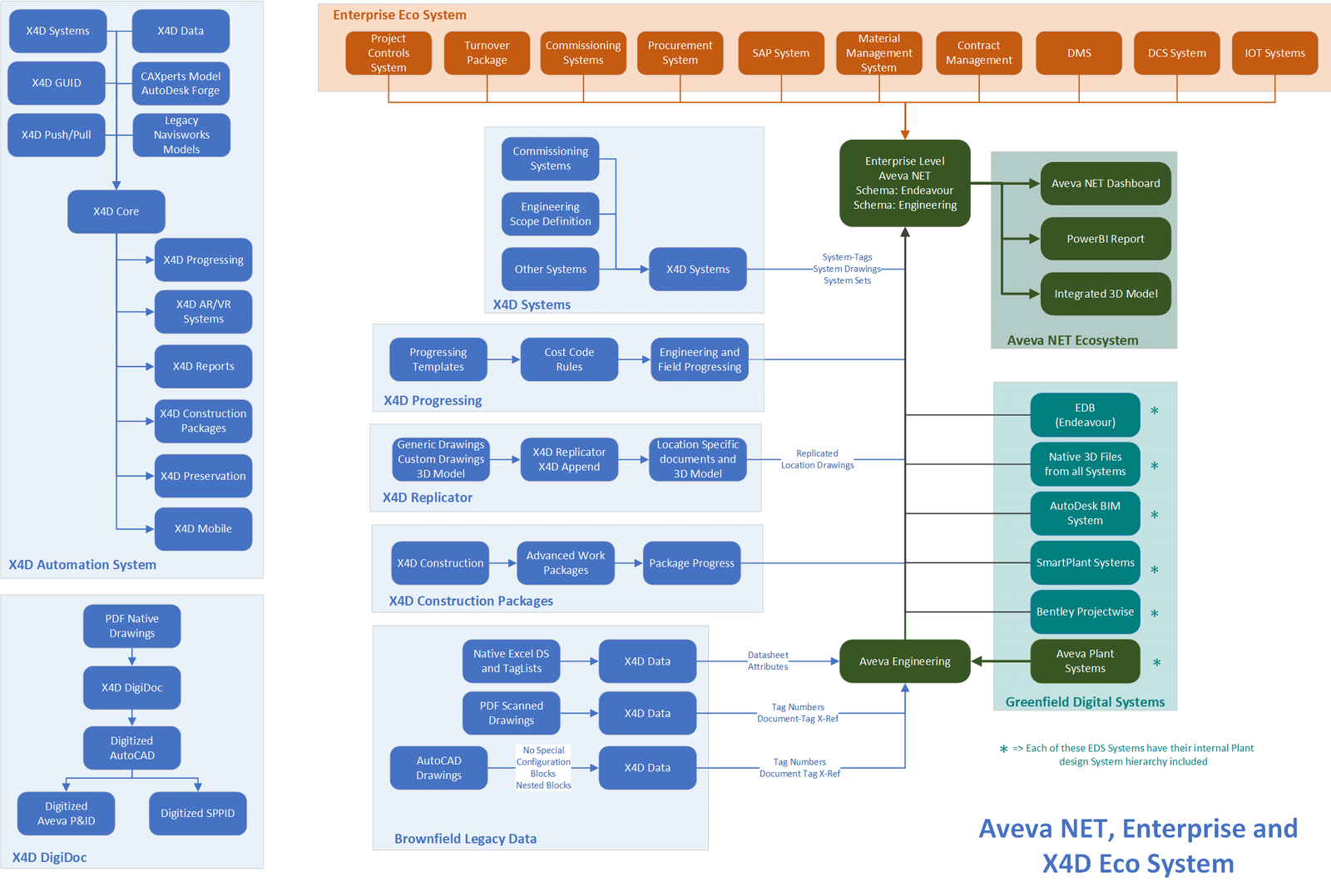

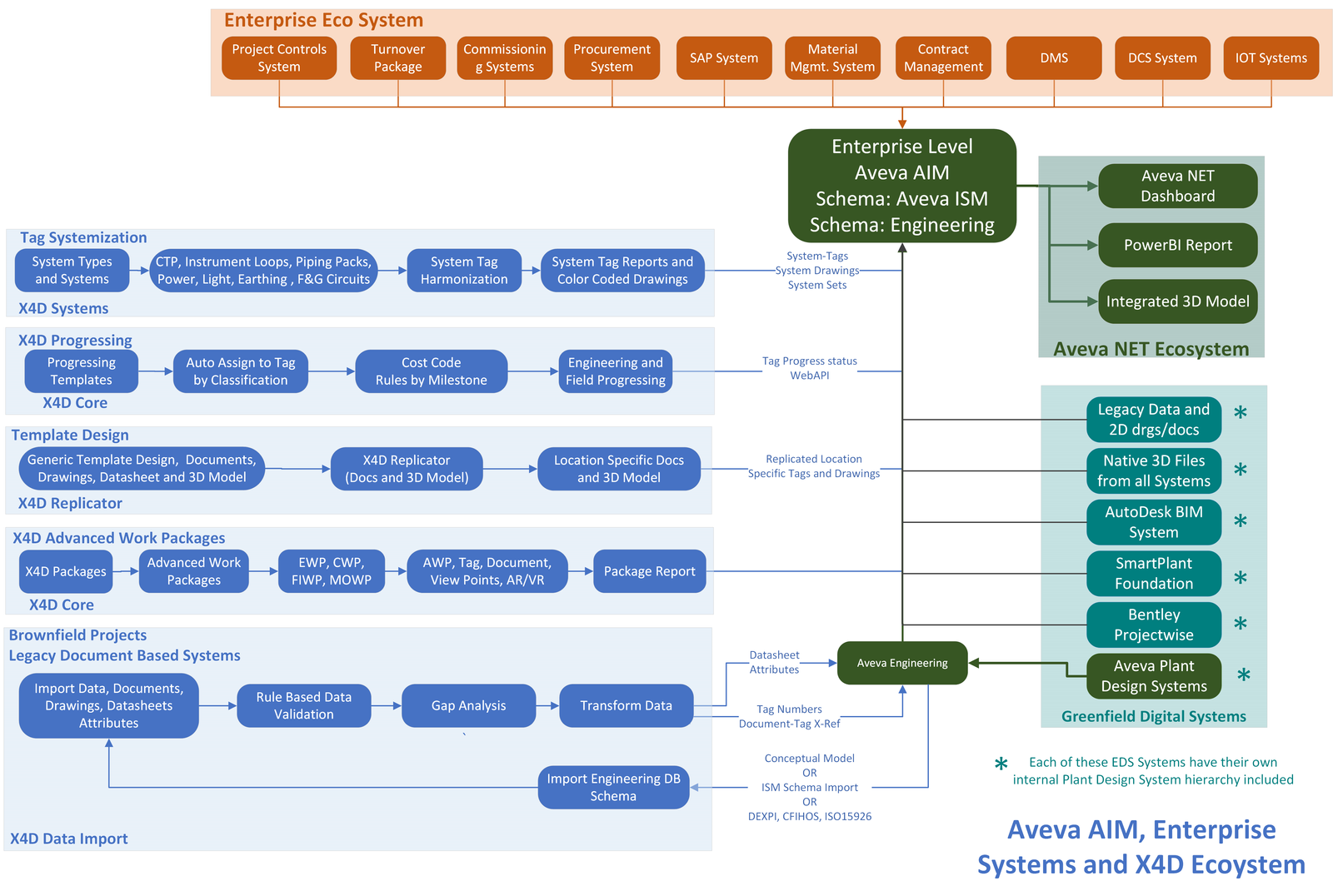

O3-X4D Interface Overview
Discover how X4D acts as a smart data engine - extracting and structuring tags, attributes, and documents from diverse formats to enable seamless data flow into O3.
