Commissioning & Completions: Smarter, Faster, More Efficient

Streamline commissioning with automated boundary drawings, system updates, and integrated testing. X4D enhances visualization, reduces manual effort, and accelerates startup readiness for a seamless transition to operations.

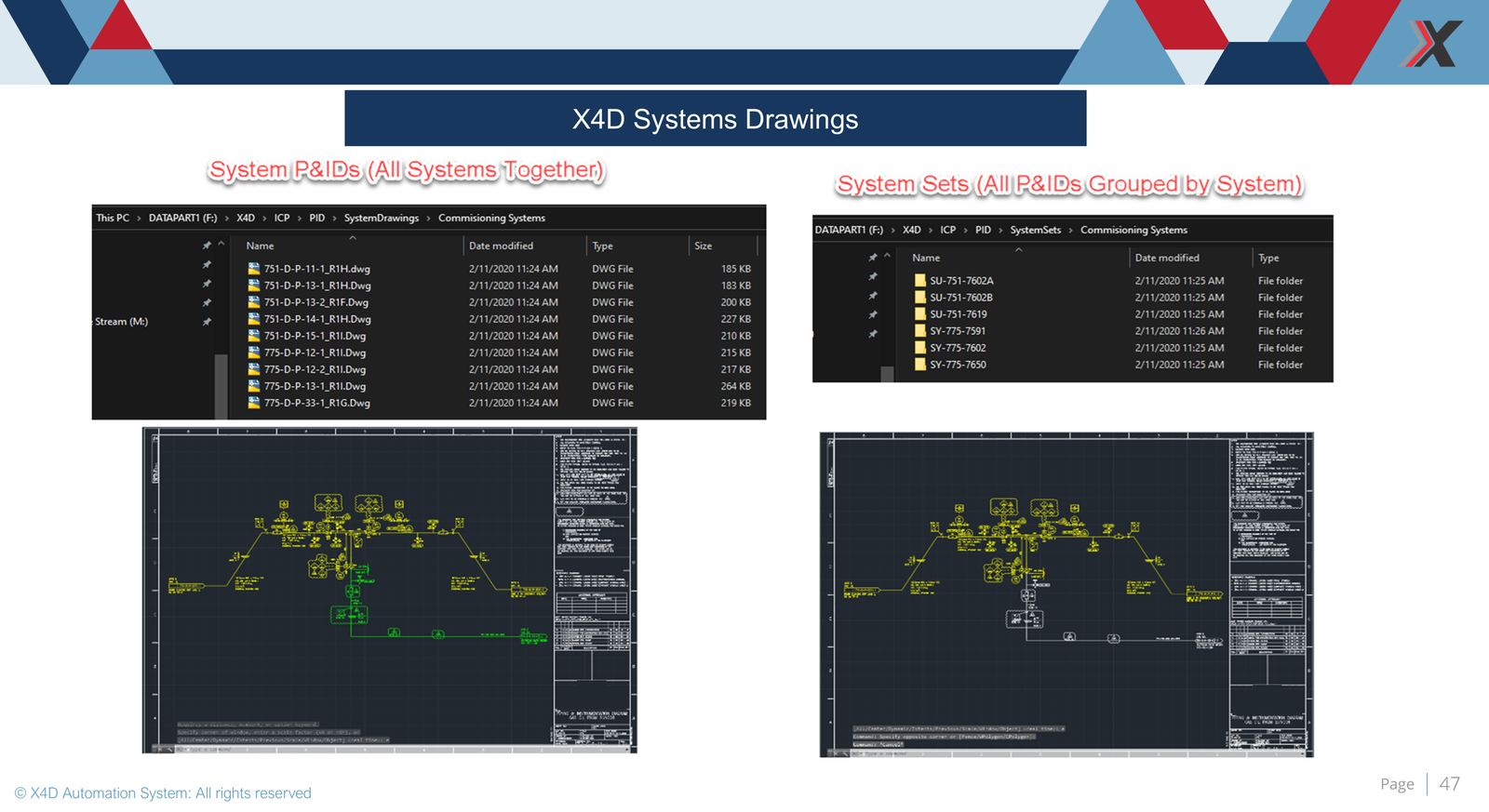

  • System Boundary Drawings
  • Standard set of fully marked up boundary drawings for all disciplines, 12 months ahead of industry standard (at IFR) for ALL Integrity Critical Drawings:
  • P&ID’s, SLD’s, BLK’s, PNL’s, HVAC, Vendor Drawing etc.
  • Rebuild functionality is best-in-industry for managing Engineering Revision Updates seamlessly
  • Automated print-out of individual subsystem boundary drawing set into a single PDF file for MC Walkdown efficiencies
  • Drawing Overlays for Procedures
  • Isolations Requirements (LOTO guide for Operations)
  • Startup Work Packs
  • Operating Procedures
  • Piping Packs
  • Gross Air Leak Tests
  • High Pressure Leak Testing
  • Chemical Cleaning Loops
  • Steam Blow Packs
  • Nitrogen Preservation Blankets
  • Parent-Child Tag Grouping for Circuits/Loops
  • Enables accurate, automated Parent-Child grouping for upload into the Completions Database (normally a manual process):
  • Lighting Circuits
  • PAGA Loops
  • Addressable F&G Loops

Enables the following:

X4D’s Commissioning Systems & Completions application streamlines planning by reducing manual tasks, enabling earlier system visualization at IFR, and supporting faster Area-to-System transitions—empowering teams to start smarter, finish earlier, and operate better.

Focused Efficiency

Enables core team to focus on planning deliverables and execution strategies.

Technology Enabling Earlier Visualization

Systemize at IFR allowing earlier Area à System transition planning and communication

Start Smarter, Finish Earlier, Operate Better

Accelerated approach enhancing integrated Startup and Ops Readiness campaigns.

FTE Count Reduction

By utilizing industry-best software to remove manual tasks.

X4D Systems Overview Gallery

Explore how X4D Systems streamlines Commissioning, Hydrotest, and Turnover processes by seamlessly integrating 2D drawings with 3D models for efficient system management, test documentation, and punch list tracking.

Earlier Commissioning Planning
Earlier Commissioning Planning

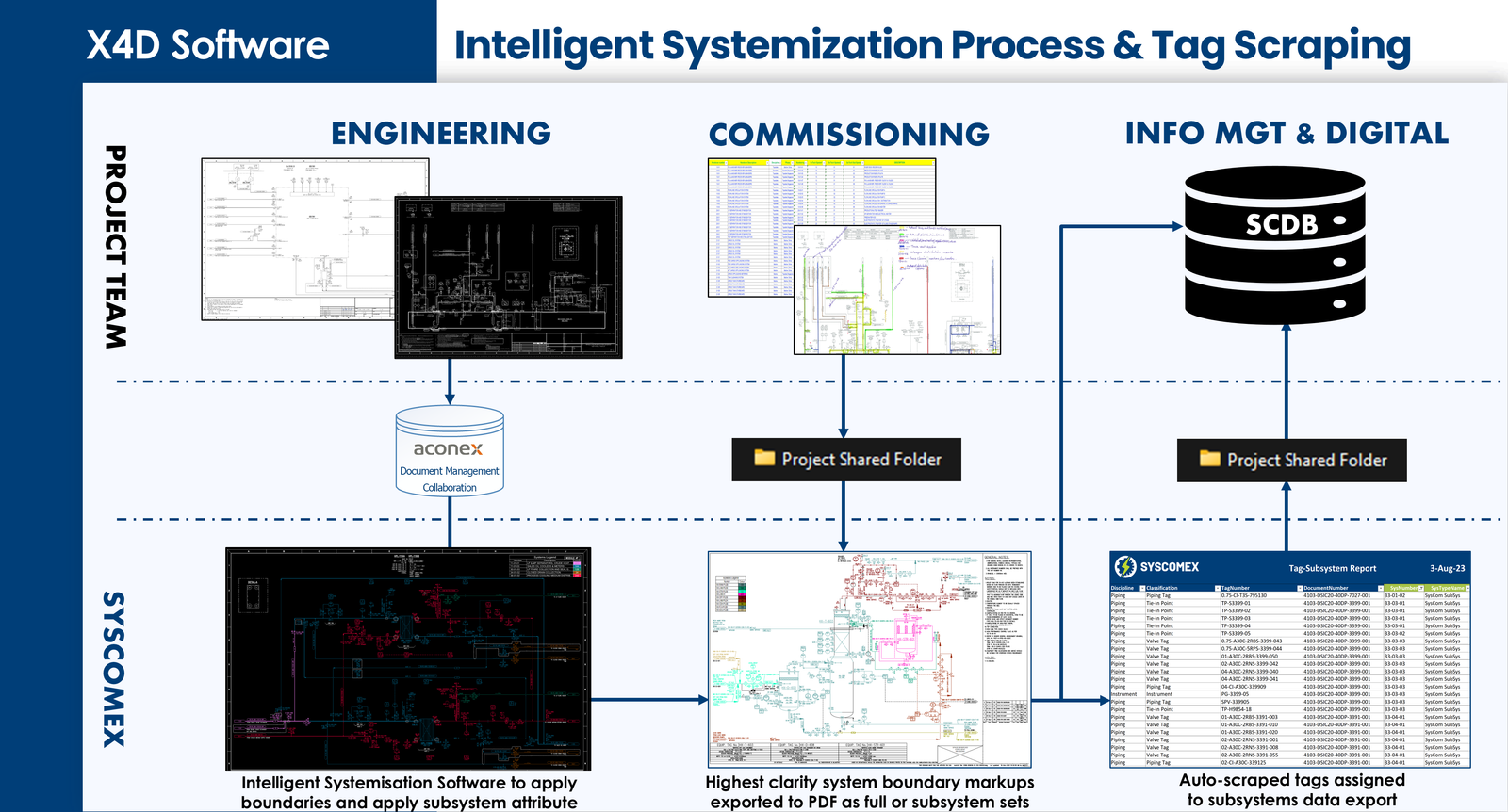

Intelligent Systemization
Intelligent Systemization

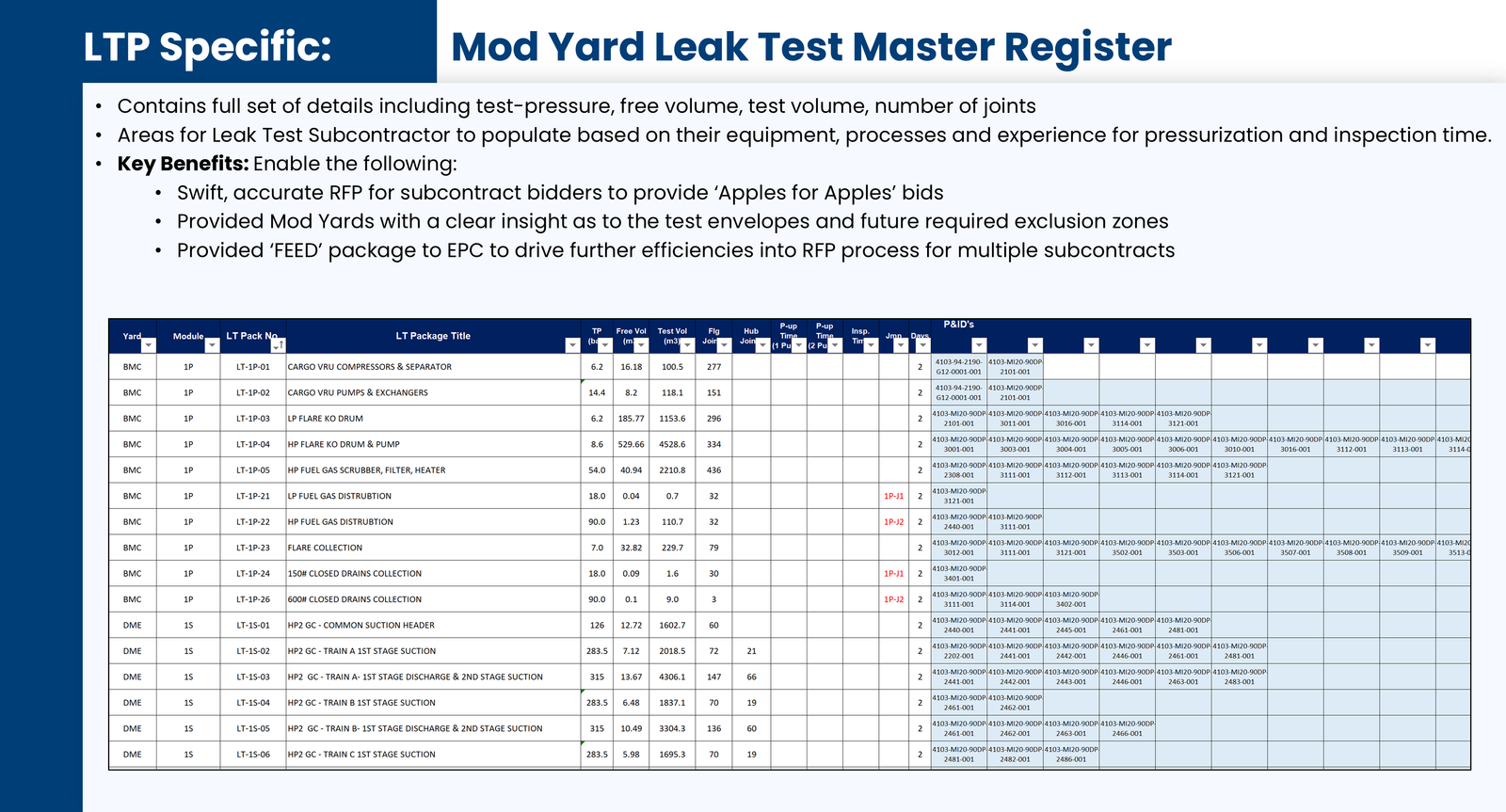

Leak-Test-Register
Leak-Test-Register

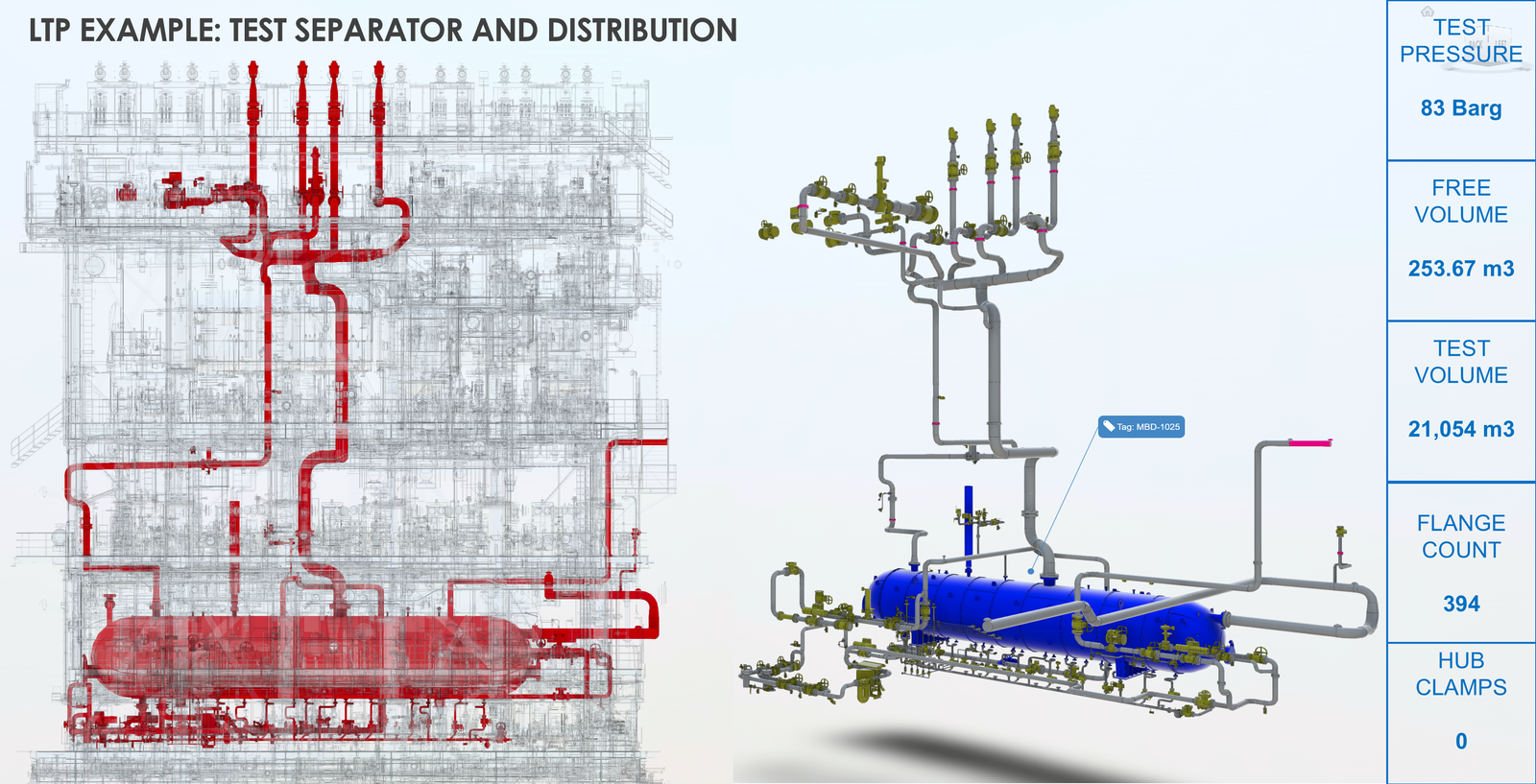

LTP-Example
LTP-Example
Piping Packs
Piping Packs

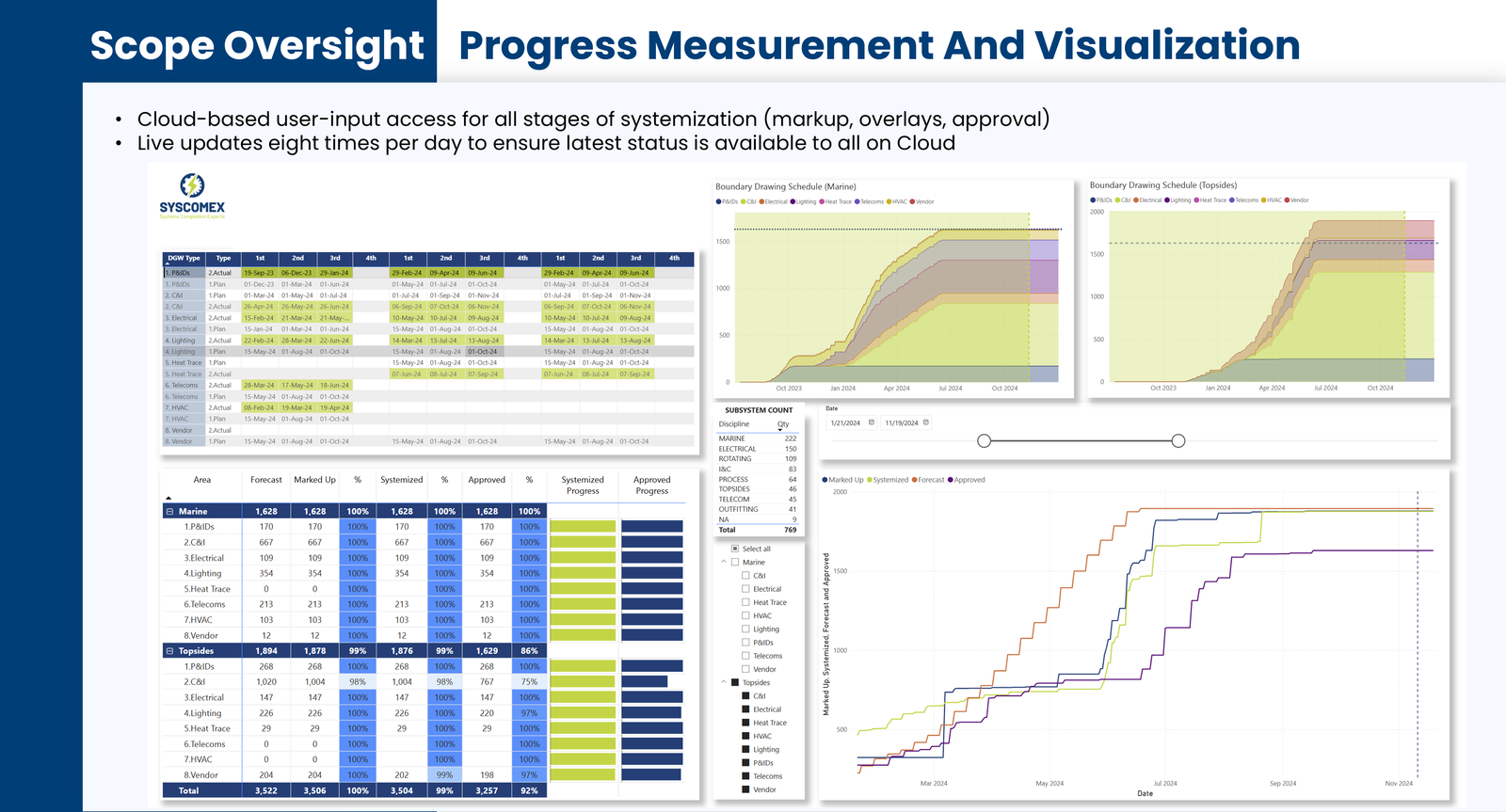

Progress-DashBoard
Progress-DashBoard

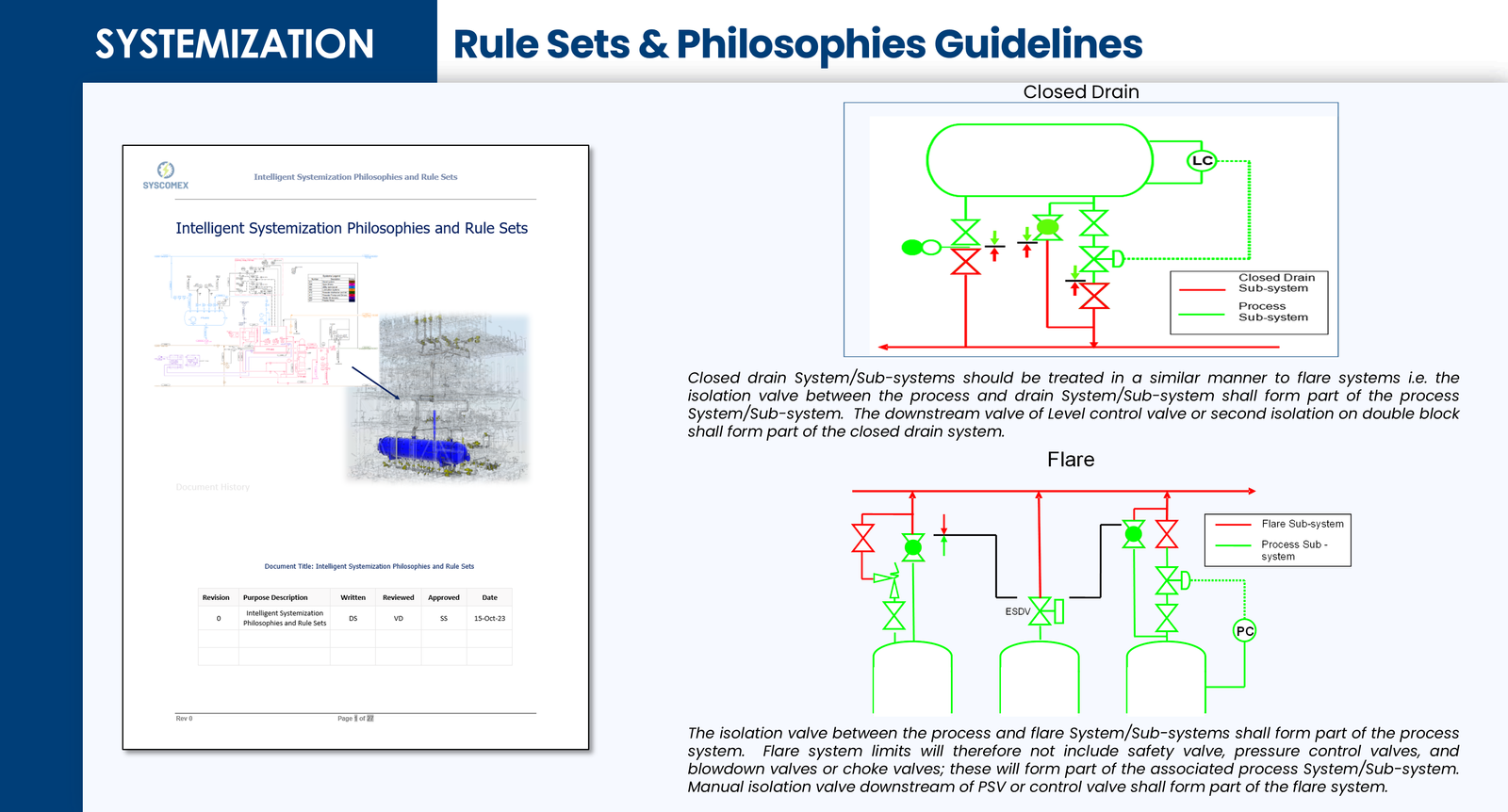

Rule Sets and Systemization-Philosophies
Rule Sets and Systemization-Philosophies

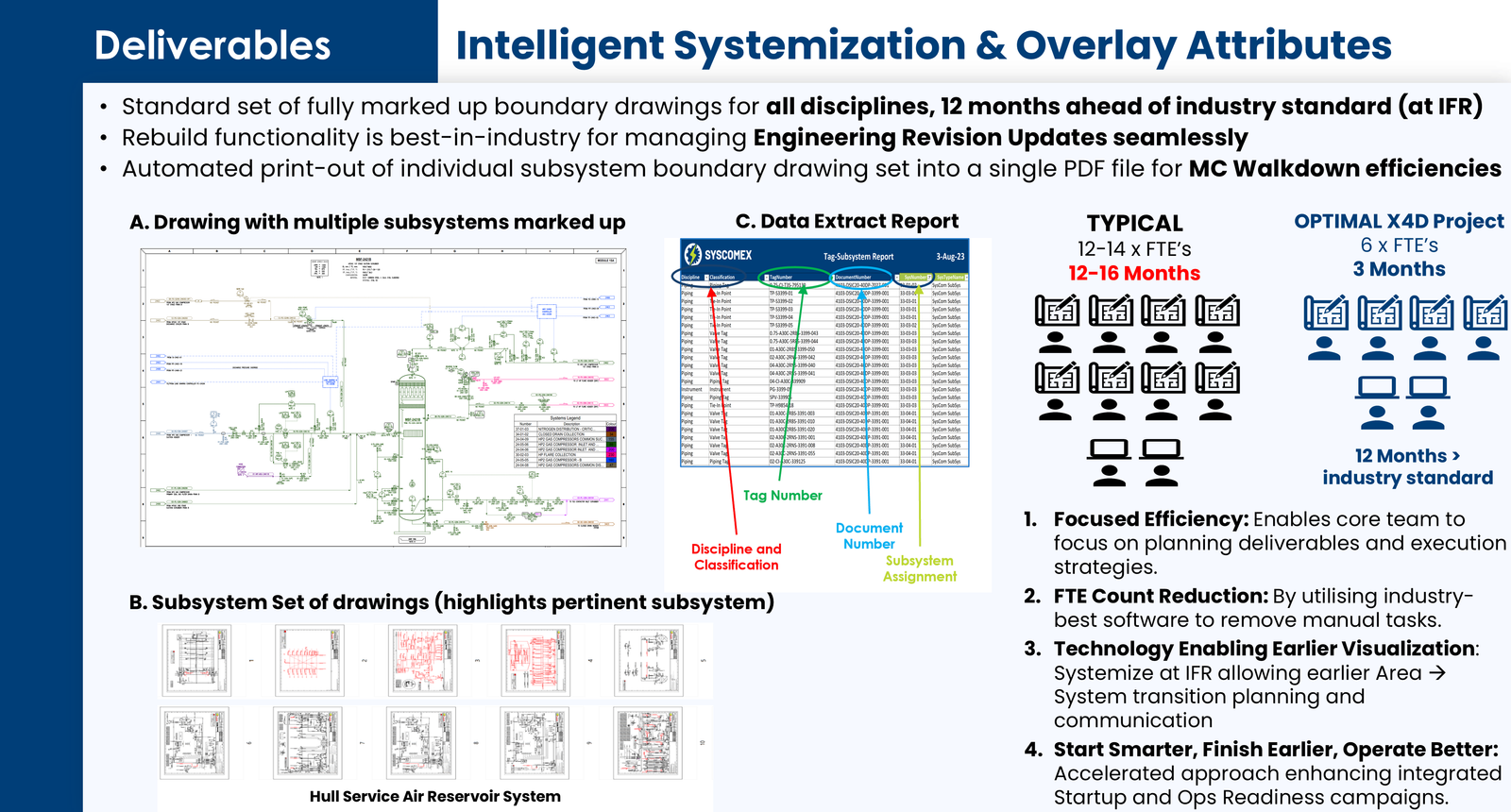

Systemization Overlays
