X4D Tag Management: Smart, Connected, and Compliant

X4D Tag Management Application centralizes and streamlines tag data across the entire project lifecycle. It ensures seamless cross-referencing, integration of 1D-4D data, and compliance with the key industry standards. With a Master Tag Registry and an Engineering Database Warehouse, teams can achieve unmatched accuracy, consistency, and efficiency in managing engineering data.

  • Development and maintenance of a centralized Master Tag Registry
  • Cross-referencing of tags with relevant documentation and deliverables
  • Integration of 1D, 2D, 3D, and 4D data for a unified, connected data environment
  • Establishment of a robust Engineering Database Warehouse repository to support the entire project lifecycle
  • Full compliance and integration with key industry standards, including CFIHOS, ISO 15926, and DEXPI
  • Document Indexing for all types including dwg, docx, xls, pdf, scans
  • Collect and catalog all relevant technical documentation, including datasheets, drawings, loop diagrams, piping isometrics, and vendor manuals.
  • Assign unique document numbers and associated metadata (e.g., revision status, discipline, system allocation)
  • Validation and Gap Analysis
  • Identify missing or inconsistent tag-to-document associations.
  • Highlight and resolve discrepancies such as outdated documents or missing datasheets.
  • Ongoing Update and Control
  • Maintain strict revision control as new tags and documents are introduced.
  • Continuously update the cross-reference matrix throughout the commissioning lifecycle and into project closeout.

Seamless Data Integration for Precision & Control

Streamline project execution with X4D’s intelligent cross-referencing application. Automatically link tags, documents, and 3D models for a fully connected data environment. Ensure accuracy, traceability, and compliance while integrating seamlessly with CMS and engineering databases.

  • Master Tag Register Compilation
  • Consolidate all equipment, instruments, and line tags from engineering documents like, P&IDs, SLDs, instrument index, line list).
  • Verify Tag Naming Conventions and formats as per Project specifications
  • Cross-Reference Matrix Development: Automated cross-reference matrix linking tags to their corresponding documents using location-based or discipline-specific prefixes.
  • 3D Model Integration: Map tags to the corresponding components in the 3D model to enable spatial visualization and traceability during commissioning.
  • CMS Integration: Upload the complete tag–document–3D model mapping into the Completion Management System (CMS) via Web APIs or structured Excel reports.

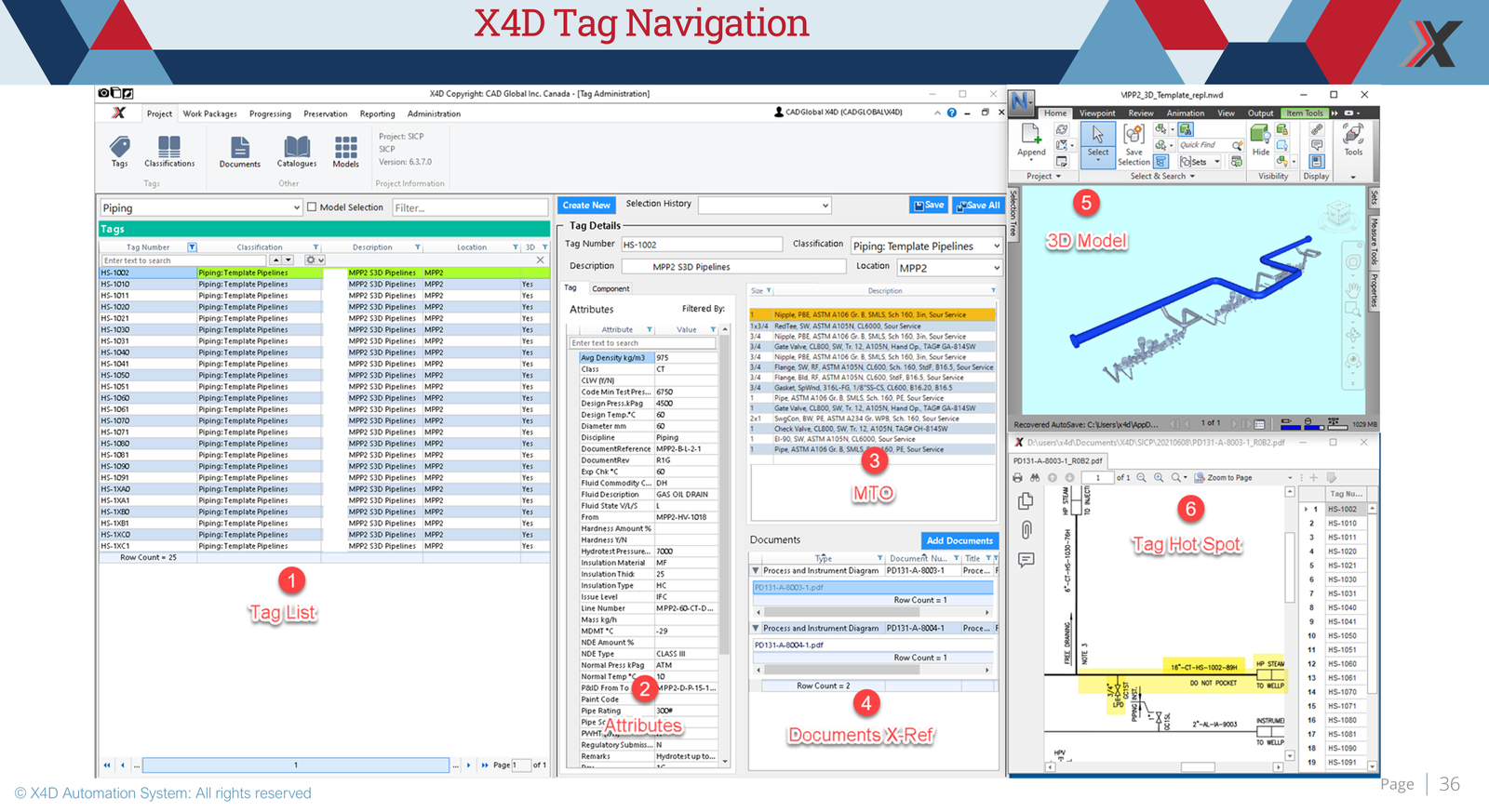

X4D Tag Management Overview

Streamline your project data with intelligent tag management. X4D ensures seamless integration of tag information across 1D, 2D, 3D, and 4D environments, enhancing accuracy, efficiency, and project collaboration.

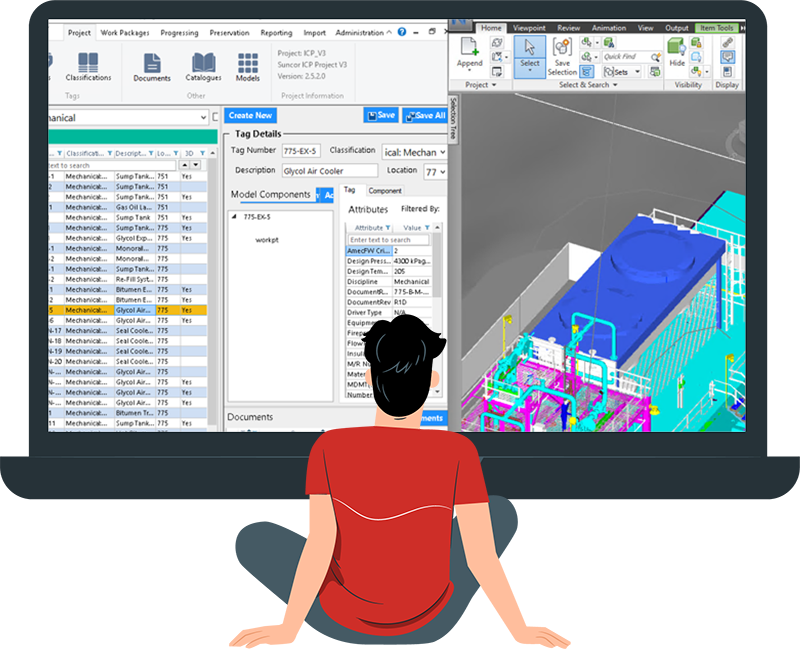

Tag Management with 3D Model
Tag Management with 3D Model
Tag Management without 3d Model
Tag Management without 3d Model

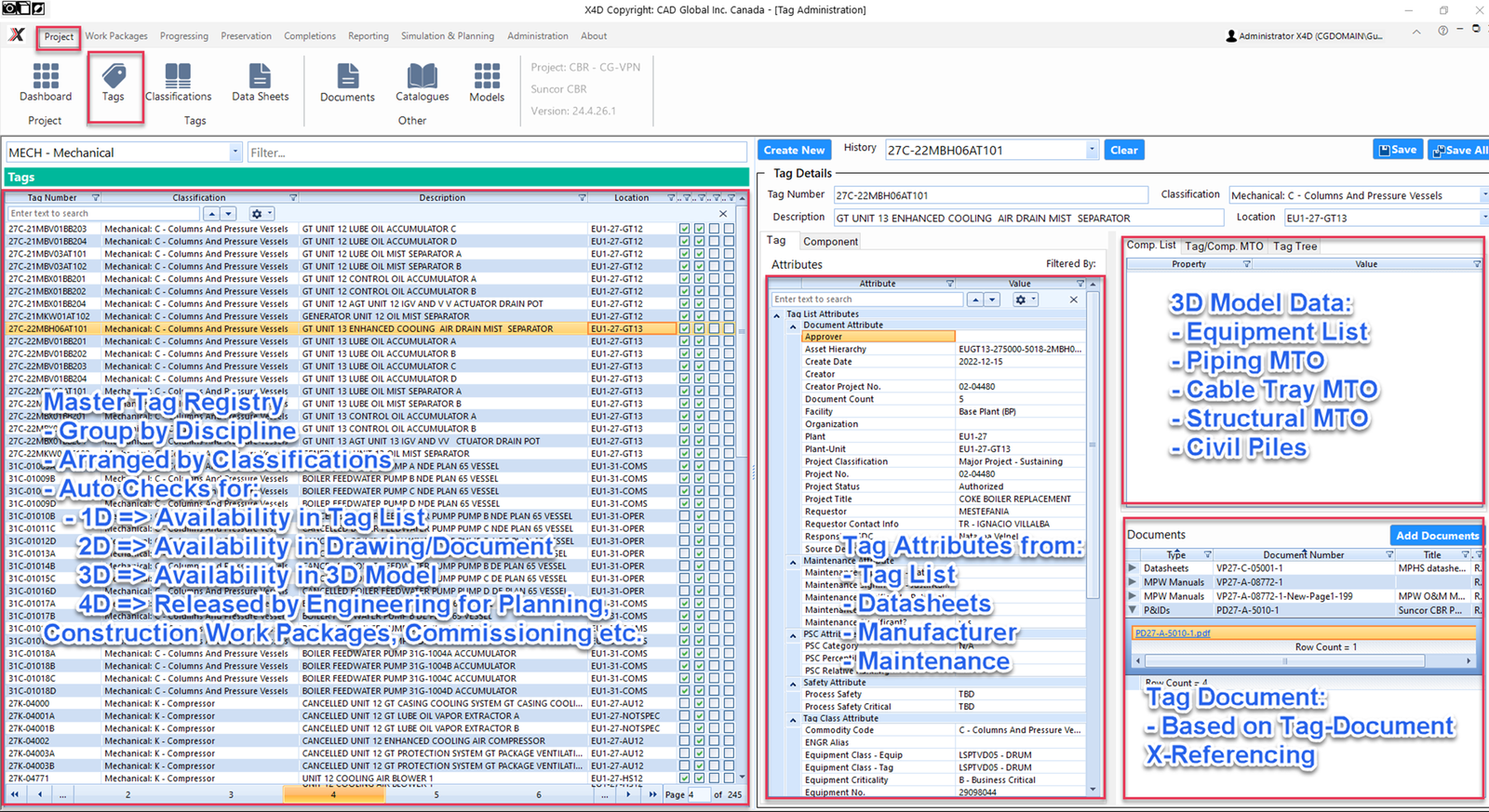

Tag Management Spreadsheet View
Tag Management Spreadsheet View

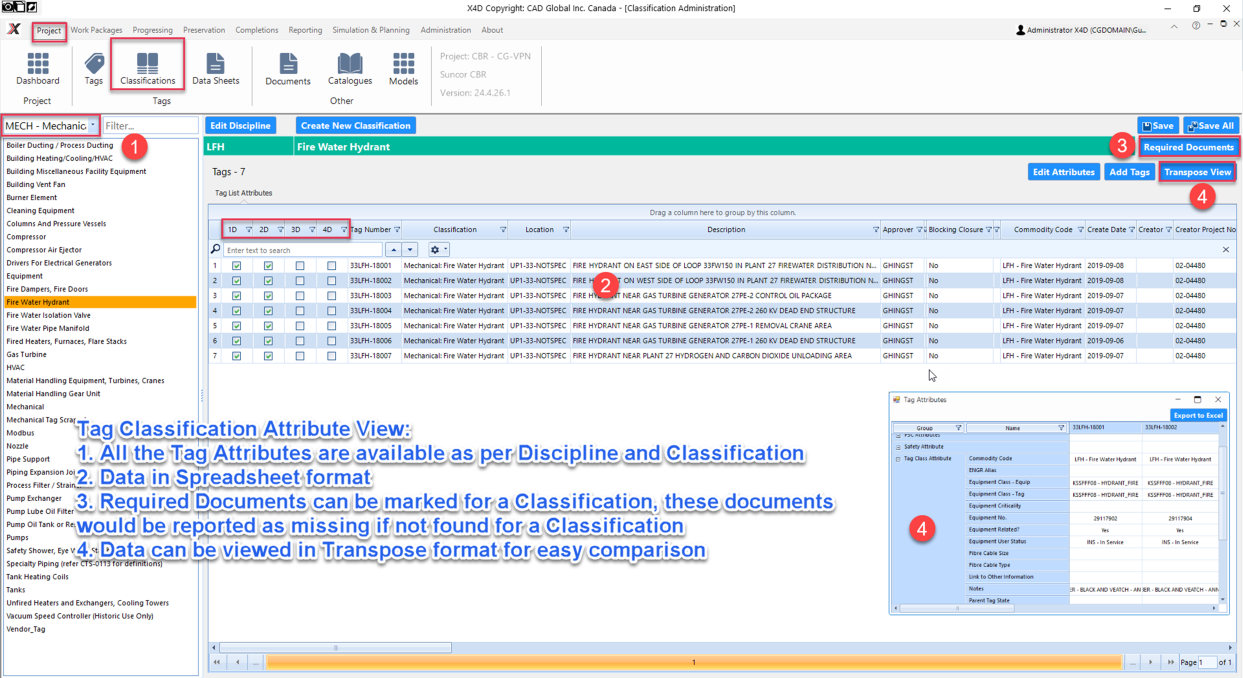

View with Tag, attribute, Linked 3D Model and Documents
View with Tag, attribute, Linked 3D Model and Documents
